Modern Twist on Shiplap

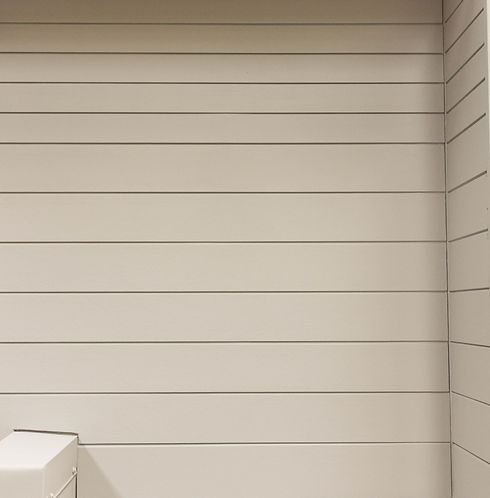

Shera Shiplap Weatherboard (Splendid Plank) is a versatile medium density fibre cement weatherboard suitable for both vertical and horizontal installation. It serves as an excellent choice for external cladding, offering durability and aesthetic appeal.
This weatherboard is known for its durability, easy installation, and resistance to fire, water, and rot. Classified as a light wall cladding, it suits both residential and light commercial buildings.
Available in two profiles, Modern Stagger (200mm or 150mm wide) and DeLine (220mm wide with or without grooves), both measuring 3000mm in length and 10mm in thickness.
Shera Shiplap weatherboard has a sanded surface ready to apply a paint system and it can be painted any colour you wish.
With its reliable performance and design flexibility, Shera Shiplap Weatherboard (Splendid Plank) is a preferred option for enhancing your next project.
Features & Benefits
Easy to install, paint & maintain
Water and humidity resistant
Does not shrink, distort or warp
Light wall cladding
Environmentally-friendly manufacturing
Used anywhere in New Zealand
Fire, water and rot resistant
Strong and Durable
Low maintenance
Resistant to all weather conditions
Does not brittle easily
Standard size
15 Year Warranty
Product Profile & Sizes
For vertical installations, feel free to mix widths from both profile ranges to create your desired look.
Gap sizes between profiles may vary due to the lap being manufactured differently,
Suitable for Vertical & Horizontal Installation
MS200 Ex-Stock
MS150 Indent Product
profile
Modern Stagger MS
finish
smooth, requires a painting system
fixing
Face fixing
Profile | Code | Length (mm) | Width (mm) | Thickness (mm) | Effective Cover (mm) | Effective Cover per length (m2) | Weight / Length (kg) | Lengths per pallet | Pallet weight (kg)** |
|---|---|---|---|---|---|---|---|---|---|
MS200 | SS30-10/MS200 | 3000 | 200 | 10 | 182 | 0.546 | 8.13 | 175 | 1520 |
MS150 * | SS30-10/MS15 | 3000 | 150 | 10 | 132 | 0.396 | 5.88 | 245 | 1540 |
** Approx. weight includes all product and packaging on a full pallet.
All dimensions and weights are approximate only and are subject to manufacturing tolerances.
Suitable for Vertical Installation Only
* Indent Product
Lead times and minimum order charges may apply.
profile
DeLine DL
finish
smooth, requires a painting system
fixing
Face fixing only
Profile | Code | Length (mm) | Width (mm) | Thickness (mm) | Effective Cover (mm) | Effective Cover per length (m2) | Weight / Length (kg) | Lengths per pallet | Pallet weight (kg)** |
|---|---|---|---|---|---|---|---|---|---|
DL00 * | SSV30-220/DL00 | 3000 | 220 | 10 | 204 | 0.612 | 8.93 | 220 | 2060 |
DL01 * | SSV30-220/DL01 | 3000 | 220 | 10 | 204 | 0.612 | 8.77 | 220 | 2030 |
DL02 * | SSV30-220/DL02 | 3000 | 220 | 10 | 204 | 0.612 | 8.60 | 220 | 1990 |
* INDENT Product. Contact CLAD Solutions for lead time and more information.
** Approx. weight includes all product and packaging on a full pallet.
All dimensions and weights are approximate only and are subject to manufacturing tolerances.
